S-100 Serial cards
This is a collection of technical info I gathered here from reading manuals, viewing websites and online group discussion. One of the biggest issues regarding S-100 systems is the incompatible serial cards and software in order to connect your system to serial terminal. One of the very first steps when you have a S-100 system running is to upgrade this with a serial card so you can try running a Rom Monitor to further increase the capabilities of you computer.Typically, S-100 companies built systems and developed software which supported only their serial cards. So I made this webpage after some discussion with friends about how it's important to keep in mind which UART/USART is on your serial card, that you arbitrarily can't insert the first serial card that you find into your system.
These days, it can be difficult to find the right serial card to match the configuration settings which is expected by the computer's software. There are times when it's possible to patch the code to make it software compatible with the serial card you currently own (providing the source code is available) - this is what I did with IMSAI Basic. But sometimes it's necessary to find a serial card which is hardware compatible with the software instead - thus avoiding any software changes.
The information below is divided into 3 categories,
1. List of UART, USART Chips
2. Compatibility Table
3. List of S-100 Serial cards and the UARTs/USARTs they contain
4. Intialize code for UARTs, USARTs
*if you have addt'l info which you can share, feel free to send me an [email]
This webpage is a work in progress to collect and sort the various types, datasheets, cards and test software. This info should help navigate the jungle of S-100 serial cards. Help was also provided from friends and the valuable information contained on their websites, Bill Degnan Vintagecomputer.net, Rich Cini Altair32.com, Tom Sanderson VirtualAltair.com, John Monaham S100computers.com, Dave Dunfield Dave's Old Computers, Herb Johnson Retrotechnology.com and Howard Harte Hartetechnoligies.com
List of UART's and USART's used on S-100 Serial cards [TOP]
Below is a list of various UARTs and USARTs with a link to their datasheets. The first
group is sorted with the most common type found on these cards. While the other group
are those found on various other cards. If there are other UARTs/USARTs used on S-100
cards please feel free to share [email]
For Additional notes on each chip, click here
Common Types:
6850 ACIA, Motorola [pdf]
8251, Intel [pdf]
9551, AMD [pdf]
2651, Signetics [pdf]
Other Types:
PT1472, Western Digital [pdf]
PT1482, Western Digital [pdf]
INS1671, National Semiconductor
INS6402, National Semiconductor [pdf]
1854, RCA [pdf]
AY-3-1013 [pdf]
AY-3-1015 [pdf]
AY-3-6402 [pdf]
1602, ??? [pdf]
1863, ??? [pdf]
8250, Intel [pdf]
2661, Signetics [pdf]
6551 [pdf]
6852, Motorola [pdf]
6853, Motorola [pdf]
6854, Motorola [pdf]
8274 Dual Uart [pdf]
Z80 SIO, Zilog [pdf]
Z80 DART, Zilog [pdf]
8530, Zilog [pdf]
8531, Zilog [pdf]
NEC7201, NEC, Siemens [pdf]
TMS5501, TI [pdf]
TMS6011, TI [pdf]
Compatibility Table [TOP]
This table should help you find if the UART/UASRT is compatible with an exisiting chip
on your serial card. Several of the chips are left out as there's no current info about
any compatible chips for them. This table is a work in progress, feel free to share
any info that could be added to this [email]
2502 | 6850 | 8251 | 9551 | 2651 | 1472 | 1482 | 1671 | 6402 | 1013 | 1015 | 1602 | 1863 | 8250 | 2661 | 6551 | |
2502 | \ | |||||||||||||||
6850 | \ | |||||||||||||||
8251 | \ | X | X | |||||||||||||
9551 | X | \ | X | |||||||||||||
2651 | X | X | \ | |||||||||||||
1472 | \ | |||||||||||||||
1482 | \ | |||||||||||||||
1671 | \ | |||||||||||||||
6402 | \ | X | X | |||||||||||||
1013 | \ | X | X | |||||||||||||
1015 | X | \ | X | |||||||||||||
1602 | X | \ | X | |||||||||||||
1863 | X | X | \ | |||||||||||||
8250 | X | X | \ | |||||||||||||
2661 | \ | |||||||||||||||
6551 | \ |
Various S-100 Serial cards (alphabetical) [TOP]
This list also includes S-100 cards which have mulitple interfaces besides a serial
port. There are some manuals which are not available online, please share via email any
links you might find to help make this complete. Also, if you are aware of any other
S-100 serial cards, please feel free to share any info via email too. [email]
----------------------------------------------------------
NAME CHIP USED
----------------------------------------------------------
Alpha Micro Systems AM300 [pdf] [html] [pic] 1671B
Altair 88-SIOA (RS232) [pdf] [html] [pic] 2502
Altair 88-SIOB (TTL) [pdf] [html] [pic] 2502
Altair 88-SIOC (20mA) [pdf] [html] [pic] 2502
Altair 88-2SIO [pdf] [html] [pic] 6850
Altair 88-UIO [pdf] [html] [pic] AY-5-1013 and 6850
Andicom ACMIO [pdf] [html] [pic] ???
CCS 2830 SIO [pdf] [html] [pic] Z80 DART
CCS 2718 SIO [pdf] [html] [pic] 1602 and 8251
CompuPro System Support 1 [pdf] [html] [pic] 8251
CompuPro System Support 2 [pdf] [html] [pic] ???
CompuPro Interfacer 2 [pdf] [html] [pic] 1602

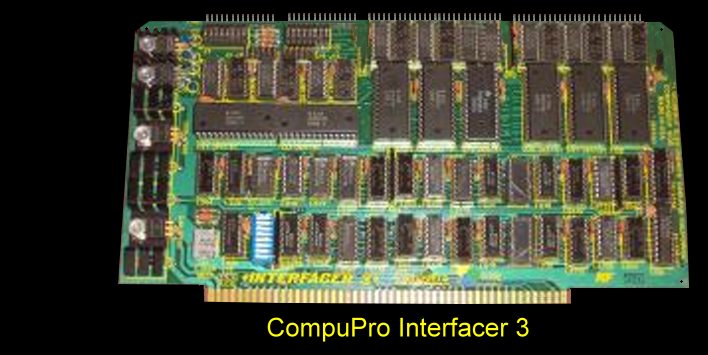

CompuPro Interfacer 3 [pdf] [html] [pic] 2651
CompuPro Interfacer 4 [pdf] [html] [pic] 2651
CompuPro SPIO [pdf] [html] [pic] ???
Cromemco TU-ART [pdf] [html] [pic] TMS5501
Dual Systems SIO4-DMA [pdf] [html] [pic] 2661
IMSAI SIO2 [pdf] [html] [pic] 8251
IMS A971 [pdf] [html] [pic] ???
IMS 480 [pdf] [html] [pic] 8250
IMS 440 IO [pdf] [html] [pic] AY-3-6402
Ithaca Audio VIO [pdf] [html] [pic] 2651
Ithaca Audio 6-SIO [pdf] [html] [pic] 2651
Jade 1P2S [pdf] [html] [pic] AY-5-1013
Morrow Multi IO [pdf] [html] [pic] 8250
Northstar SIO [pdf] [html] [pic] ???
Processor Technology 3P+S [pdf] [html] [pic] S1883

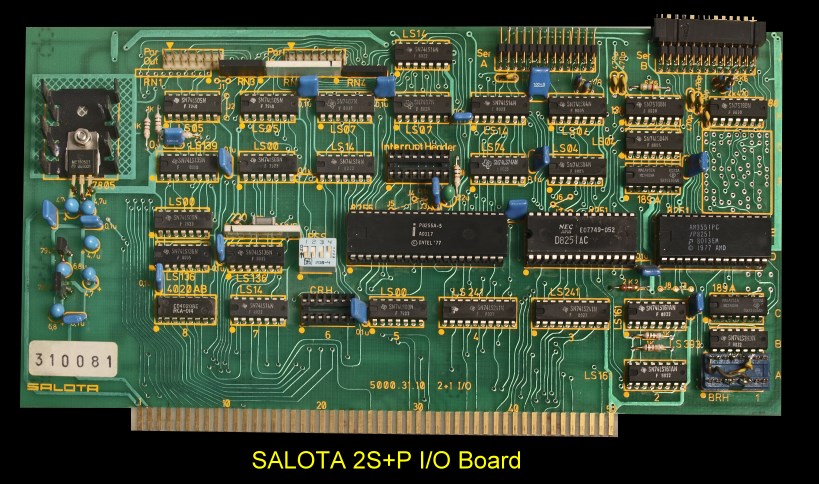

Salota 2S+P [pdf] [html] [pic] 8251
SD Systems IO8 [pdf] [html] [pic] 8530 or 8531
S.C. Digital 3SPC-N [pdf] [html] [pic] ???
SCP 400C Multi Serial [pdf] [html] [pic] 8251
Solid State Music IO4 [pdf] [html] [pic] TMS6011 (2502,8251,S1883 emulation)
Solid State Music IO5 [pdf] [html] [pic] ???
Vector Graphics Bitstreamer I [pdf] [html] [pic] ???
Vector Graphics Bitstreamer II[pdf] [html] [pic] 8251
NAME CHIP USED
----------------------------------------------------------
Alpha Micro Systems AM300 [pdf] [html] [pic] 1671B
Altair 88-SIOA (RS232) [pdf] [html] [pic] 2502
Altair 88-SIOB (TTL) [pdf] [html] [pic] 2502
Altair 88-SIOC (20mA) [pdf] [html] [pic] 2502
Altair 88-2SIO [pdf] [html] [pic] 6850
Altair 88-UIO [pdf] [html] [pic] AY-5-1013 and 6850
Andicom ACMIO [pdf] [html] [pic] ???
CCS 2830 SIO [pdf] [html] [pic] Z80 DART
CCS 2718 SIO [pdf] [html] [pic] 1602 and 8251
CompuPro System Support 1 [pdf] [html] [pic] 8251
CompuPro System Support 2 [pdf] [html] [pic] ???
CompuPro Interfacer 2 [pdf] [html] [pic] 1602
CompuPro Interfacer 3 [pdf] [html] [pic] 2651
CompuPro Interfacer 4 [pdf] [html] [pic] 2651
CompuPro SPIO [pdf] [html] [pic] ???
Cromemco TU-ART [pdf] [html] [pic] TMS5501
Dual Systems SIO4-DMA [pdf] [html] [pic] 2661
IMSAI SIO2 [pdf] [html] [pic] 8251
IMS A971 [pdf] [html] [pic] ???
IMS 480 [pdf] [html] [pic] 8250
IMS 440 IO [pdf] [html] [pic] AY-3-6402
Ithaca Audio VIO [pdf] [html] [pic] 2651
Ithaca Audio 6-SIO [pdf] [html] [pic] 2651
Jade 1P2S [pdf] [html] [pic] AY-5-1013
Morrow Multi IO [pdf] [html] [pic] 8250
Northstar SIO [pdf] [html] [pic] ???
Processor Technology 3P+S [pdf] [html] [pic] S1883
Salota 2S+P [pdf] [html] [pic] 8251
SD Systems IO8 [pdf] [html] [pic] 8530 or 8531
S.C. Digital 3SPC-N [pdf] [html] [pic] ???
SCP 400C Multi Serial [pdf] [html] [pic] 8251
Solid State Music IO4 [pdf] [html] [pic] TMS6011 (2502,8251,S1883 emulation)
Solid State Music IO5 [pdf] [html] [pic] ???
Vector Graphics Bitstreamer I [pdf] [html] [pic] ???
Vector Graphics Bitstreamer II[pdf] [html] [pic] 8251
Initialize code for various UART's and USARTs [TOP]
2502 test code [asm]
8251/2651/9551 test code [asm]
6850 test code [asm]
1602 test code [asm]
1671 test code [asm]
TMS5501 test code [asm]
TMS6011 test code [asm]
AY-3-1013 test code [asm]
S1883 test code [asm]
8530 test code [asm]
8531 test code [asm]
8251/2651/9551 test code [asm]
6850 test code [asm]
1602 test code [asm]
1671 test code [asm]
TMS5501 test code [asm]
TMS6011 test code [asm]
AY-3-1013 test code [asm]
S1883 test code [asm]
8530 test code [asm]
8531 test code [asm]
Here's an additional website which have some good references for UART, USART chips.
ChipDir
